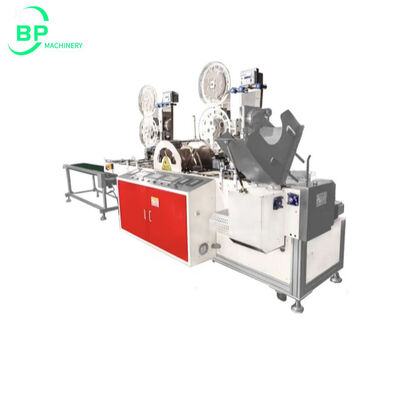

Kraft envelope file auxiliary equipment for button and string cut BP002 Made in china

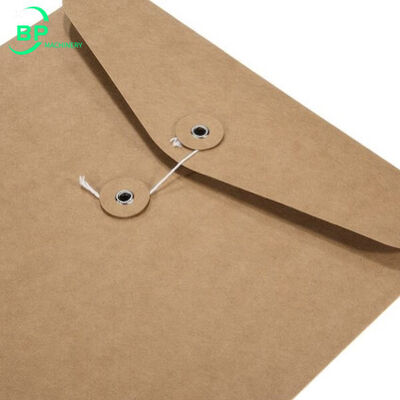

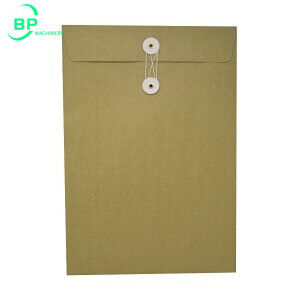

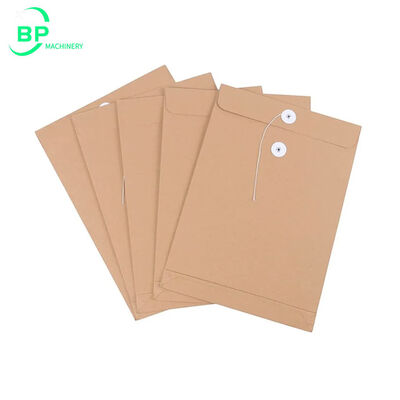

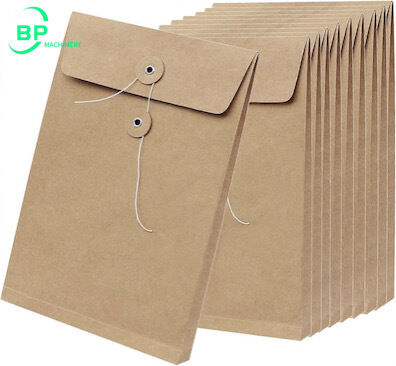

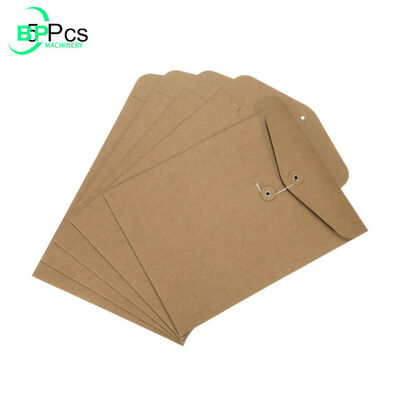

BP002 kraft envelope auxiliary machine is special made for Kraft envelope file which wanna hole perforate for button insert and string cuting for lock function ,detail check below finished picture :
Available produce: Lx W x bottom width 340x240 x40mm ,paper gsm 120-200gsm
L : 330- 350 mm ,W : 230 - 250 mm ,Bottom width 30-50mm ,cover width : 40-60mm
Technical data :
| Speed | 30-45 pcs/min |
| Envelope paper weight | 120-200 gsm |
| Dimension | 5500 x 2000 x 2000mm |
| Envelope size | See picture (customer made ) |
| Power | 1ph,220v ,7kw |
| Weight | 1300KG |
Machine main configuration
Support motor: 750W 7 sets.
②57 stepper motor: 2 sets.
③Touch screen control system: 3 sets.
④ Corner punching and punching all-in-one machine for assembly line: 2 sets.
⑤ Wire feeding and trimming system: 1 set.
⑥Paper feeding and paper cutting system: 2 sets.
Also for metal clasp insert machine for kraft envelope can check below link
