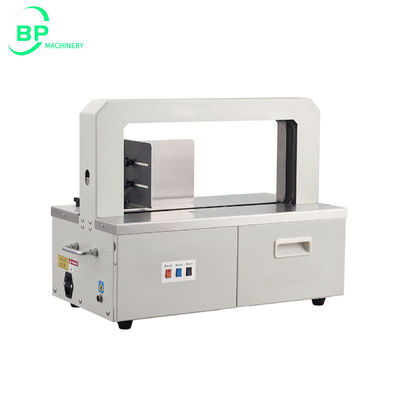

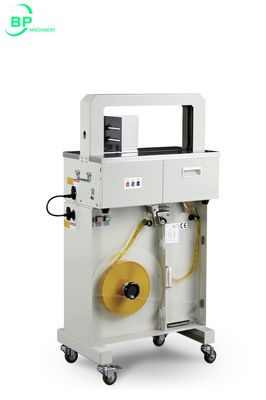

OPP And Paper Banding Machine Made In China BP02-30G Made In China Used For Notebook And Else Straping
Paper banding machine, also known as strapping machine , uses strapping tape to bundle products or packages, and then tightens them and combines the two ends with hot-melt bonding using a heating iron. The function of the baler is to reinforce the packaged items so that the items will not be scattered due to weak bundling during transportation and storage. At the same time, they should be bundled neatly and beautifully.
Applicable to many fields, such as food, printing, medical, fresh vegetables and other fields
Technical date

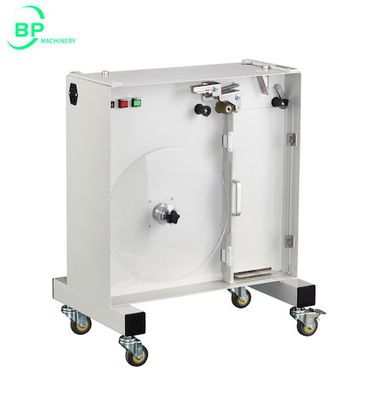

| Model No | BK02-30G | BK02-30GB(BK02-30G+DZ02-30) |
| Applicable tape | paper & OPP film or OPP | paper & OPP film or OPP |
| Material 材料宽*厚 | 29-29.5MM(width) x 110-130mic (thickness) | 29-29.5MM(width) x 110-130mic (thickness) |
| Roller size | 40MM (core diameter) x150M(length) | 40MM (core diameter) x500M(length) |
| Arch size | 470 x 200mm | 470 x 200mm |
| Strap size | Max 450 x 200 Min 40 x 40mm | Max 450 x 200 Min 40 x 40mm |
| Power supply | 220V/50HZ | 220V/50HZ |
| Control system | PCB | PCB |
| Strapping speed | </= 2.2seconds | </= 2.2seconds |
| Strapping tension | 5-40N | 5-40N |
| Machine dimension | 630 x 364 x 474mm | 630*430*1225mm |
| Net weight | 32kg | 72KG |
| Welding method | Heating sealing 瞬间热熔 | Heating sealing |
Advantages :

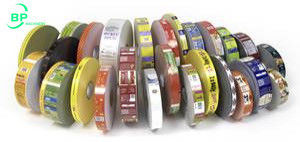

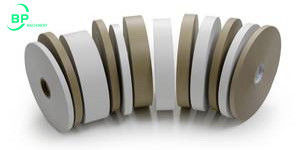

Banding material (OPP printed film) Banding material ( One side plastic coated Paper )
Machine suitable for below packing and differ filed .
