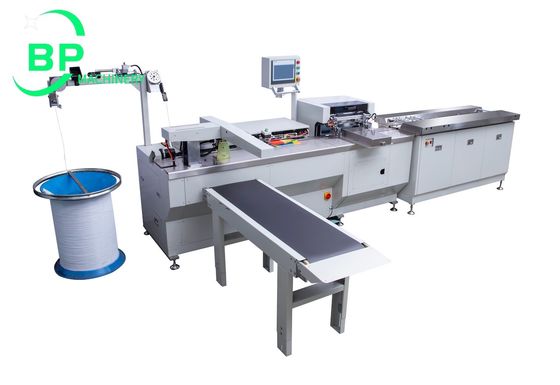

PBS420 spiral coil lock binding and punching machine is Bp Machinery good sales machine ,it helps notebook manufacture to produce metal single wire or spiral ring notebook more easier than traditional hand work . Speed 1000-1300 books / hour make it very suitable for small ,middle and big print factory ,compare Germany machine ,invest small ,but also have same functions with spiral cutting coil lock system (make book binding stable and safe )
Technical data :
| speed | Up to1300 books per hour |
| Air pressure | 5-8 kgf |
| Spiral diameter | 8mm – 20mm |
| Max binding width | 420mm |
| Min binding width | 70mm |
| G type back hook scissors range | 12mm – 20mm available |
| L type common hook scissors range | 8mm - 20mm |
| Spiral hole pitch optional range | 5,6,6.35,8,8.47 (mm) |

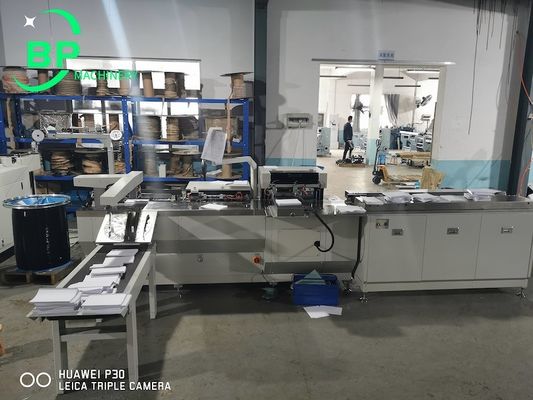

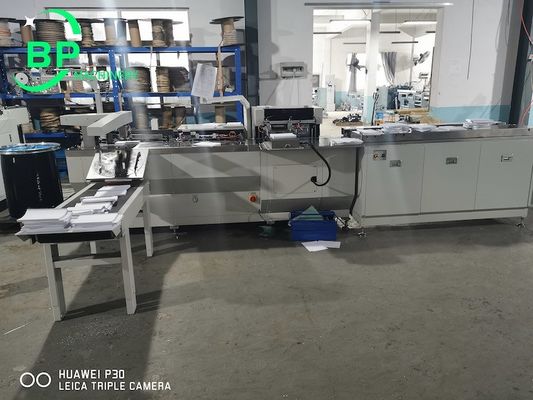

Below is our semi auto spiral binding machine with coil lock functions ,only have spiral forming inserting book and cuting coil lock ,no hole punching .
But is popular for some print factory who have many thickness notebook ,need spiral dia like 25mm to binding 20mm thickness book ,then need consider this .
PBS420 Automatic spiral coil lock binding and paper punching machine Advantages :
1. For large-scale productions of spiral book
2. With G type back hook coil lock and L type common lock choice
3. Suitable some notebook (cover binding size bigger than inner paper )
4. Max could be used for 16mm thickness notebook
Machine key part of spiral size changed (scissors ,pitch teeth ,core size bar ,hooks )
1 .Core size bar (each differ size spiral dia need differ core size bar )
2 .Spiral forming pins and pitch adjust (Pitch teeth 5mm ,6mm,6.35mm ,8mm ,8.47 mm choice )
3.G Lock Scissors (coil lock ) and hooks for book hole feeding in

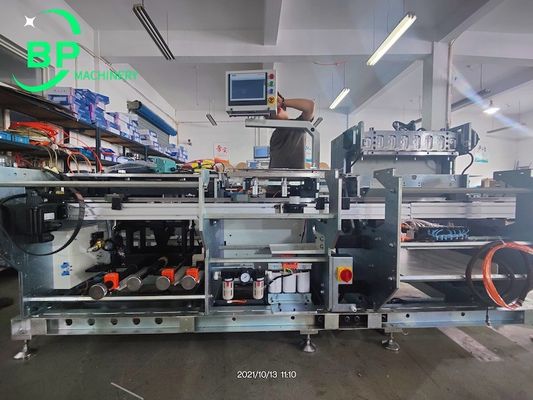

Machines additional pictures :

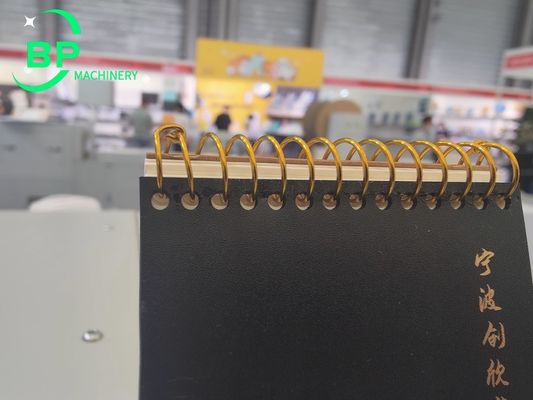

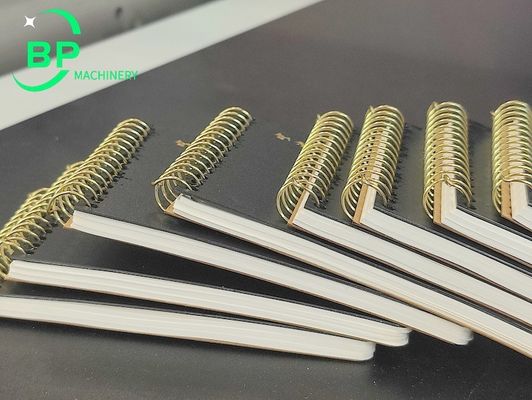

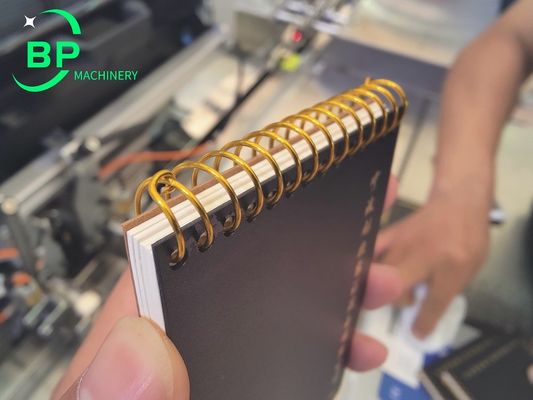

A7 size notebook spiral coil lock picture

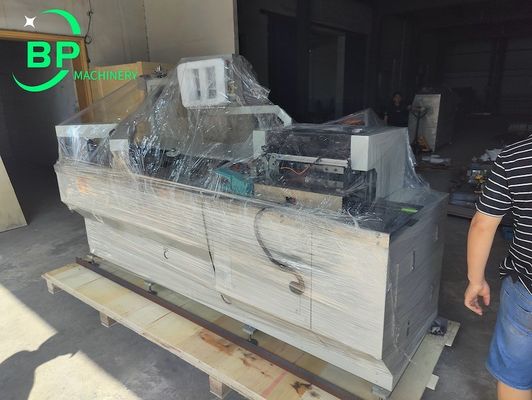

Automatic Notebook Spiral notebook binding machine packing situation
Machine exhibition show :

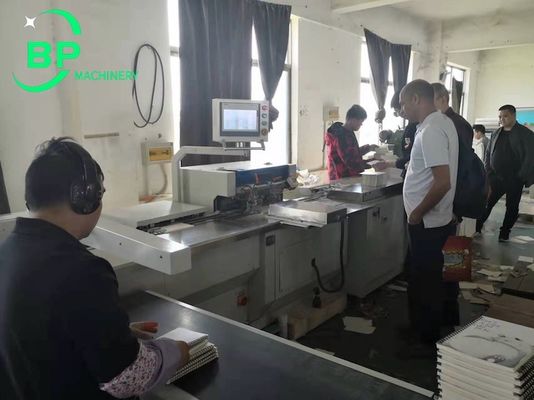

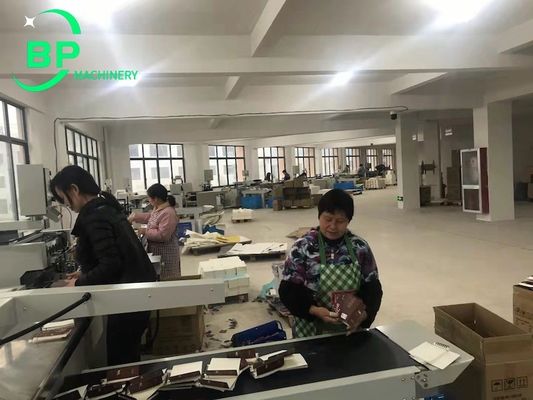

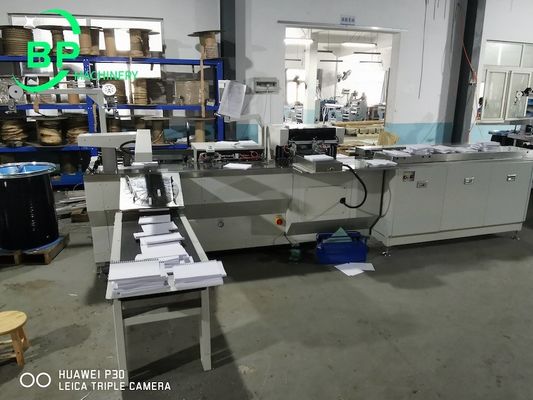

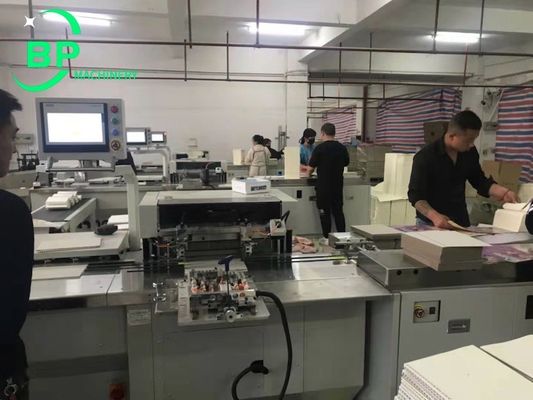

Machine install in customer factory
In China ,for metal spiral binding machine ,choose us give you quality and stable machine ,also good services .
