Application: Printing and packing area .

Type: Heat pressing machine

Functions: Die cutting & hot stamping (bronzing machine)

المكونات الأساسية:: المحرك ، المضخة ، أخرى ، PLC ، العتاد ، المحمل ، علبة التروس ، المحرك

مكان المنشأ:: تشجيانغ ، الصين

حالة: جديد

طريقة العمل: شبه تلقائي

Key selling points: Easy operate and stable quality

After-sales Service: Engineers available to service machinery overseas, Online

Size: 750,930,1040,1100,1200

Warranty: 1 Year ,12months

معلومات اساسية

مكان المنشأ: الصين

اسم العلامة التجارية: BP MACHINERY

إصدار الشهادات: CE certification

Model Number: TYBP750

شروط الدفع والشحن

تفاصيل التغليف: حالة خشبية

وقت التسليم: 5-8 أيام العمل

شروط الدفع: T/T ، L/C ، Western Union

القدرة على العرض: 20 مجموعة / شهر

صالة عرض

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area

منتوج وصف

Semi Auto Die Cutting and Hot Foil Stamping Machine TYMP750

Name: Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area
Brand: NINGBO BINPENG MACHINERY CO.,LTD
SKU: TYBP750
Availability: InStock

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area 0

Hot foil stamping machine belongs to printing and packaging equipment.
They are used for hot stamping all kinds of colored aluminum foil and embossing or die cutting different kinds of pictures, clothing ticketing, greeting cards, trade mark, books cover, note book, packaging cartons, paper boxes, paper bags, Cork pad, folders, and other high grade decoration and printing materials, etc. The suitable product materials are including paper, cardboard, plastic (PVC,PP,PE), leather, wood and cork, etc.,So that they are necessary equipment for printing factory, packaging enterprise and Office stationery manufacturer.

Technical data :

Product Paramenters

Model	TYMB750	TYMB930	TYMB1040	TYMB1100	TYMB1200
Max. Area Available	750*520mm	930*670mm	1040*720mm	1100*800mm	1200*820mm
Max. Stamping Area	665*460mm	920*665mm	1020*700mm	1000*750mm	1180*800mm
Skip Range	1-500mm	1-665mm	1-700mm	1-750mm	1-800mm
Foil-Delivered Length	1-500mm	1-665mm	1-700mm	1-750mm	1-800mm
Foil-Feeding Precision	1mm
Foil-Delivered Groups	2	3	3	3	3
Skip Frequency	1-99times
Working Speed	25±2times/min	22±2times/min	21±2times/min	20±2times/min	20±2times/min
Working Pressure	150T	170T	190T	220T	250T
Temperature Range	1-170℃
Electric Power	7kw	12kw	12kw	13.8kw	15kw
Main Motor Power	2.2kw-6H	4kw-4H	4kw-4H	4kw-4H	5.5kw-6H
Net Weight	1800kg	3200kg	3800kg	5000kg	5500kg
Gross Weight	2000kg	3400kg	4000kg	5200kg	5800kg
Dimension	190014501950mm	180019002150mm	210021002300mm	220020002000mm	230020402060mm
Voltage	220/380/415V

Main structure characteristics:

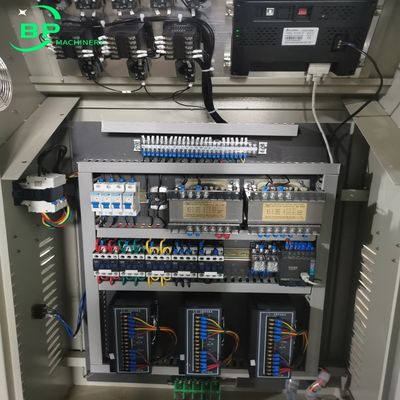

Equipped with imported PLC and servo motor.

Main body was made of HT250 high strength cast iron, it has high strength.

Single disk electromagnetic clutch is sensitive and reliable.

The electrical system is designed according IEC standard.

The operation height is reasonably designed, the open angle of the pressing plate is big.

It has the function of single cutting, continuously cutting. The time delay of the pressing plate can be adjusted.

The torque of the gear is great, the pressing pressure is great.

Application :

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area 1

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area 2

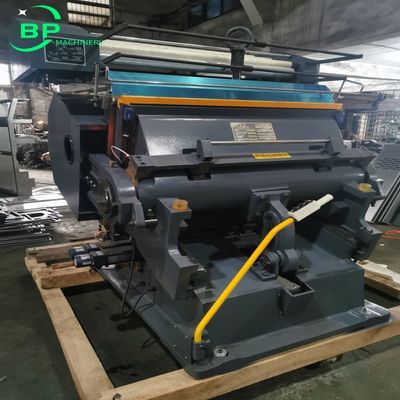

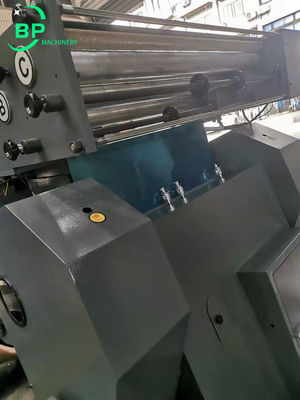

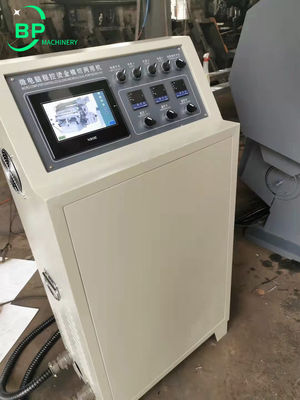

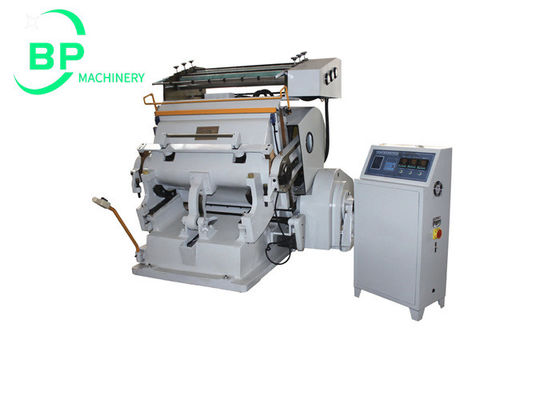

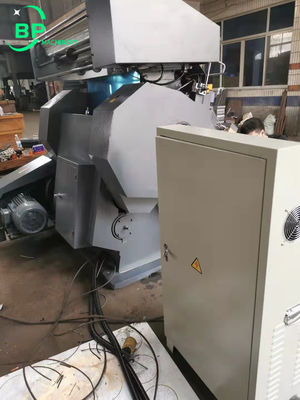

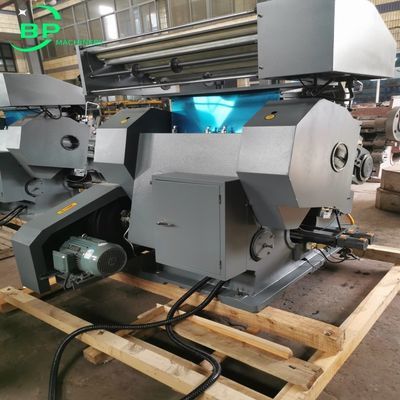

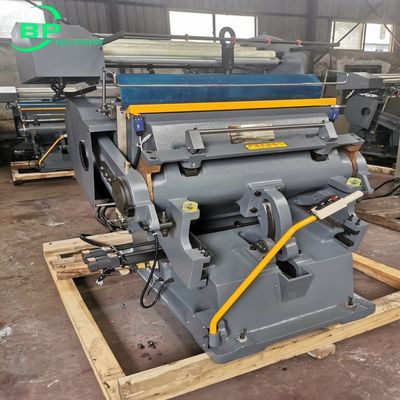

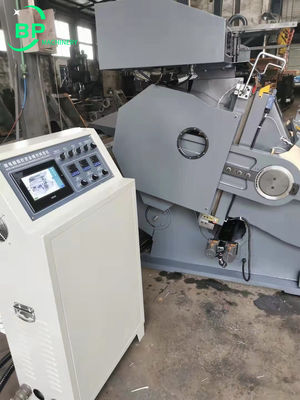

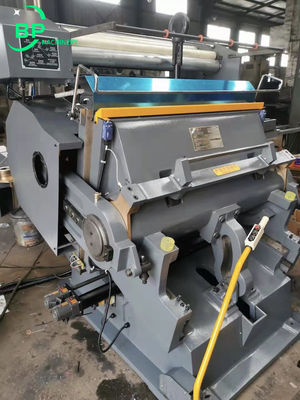

Machine picture:

Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area 6
